Part # 6Y8-0E83R-51-00

Superseded from Part # 6Y8-WE83R-50-00

Command Link® Twin Engine Gauge Kit with
704 Control Box Round Three Gauge Kit:
6Y8-0E83R-51-00

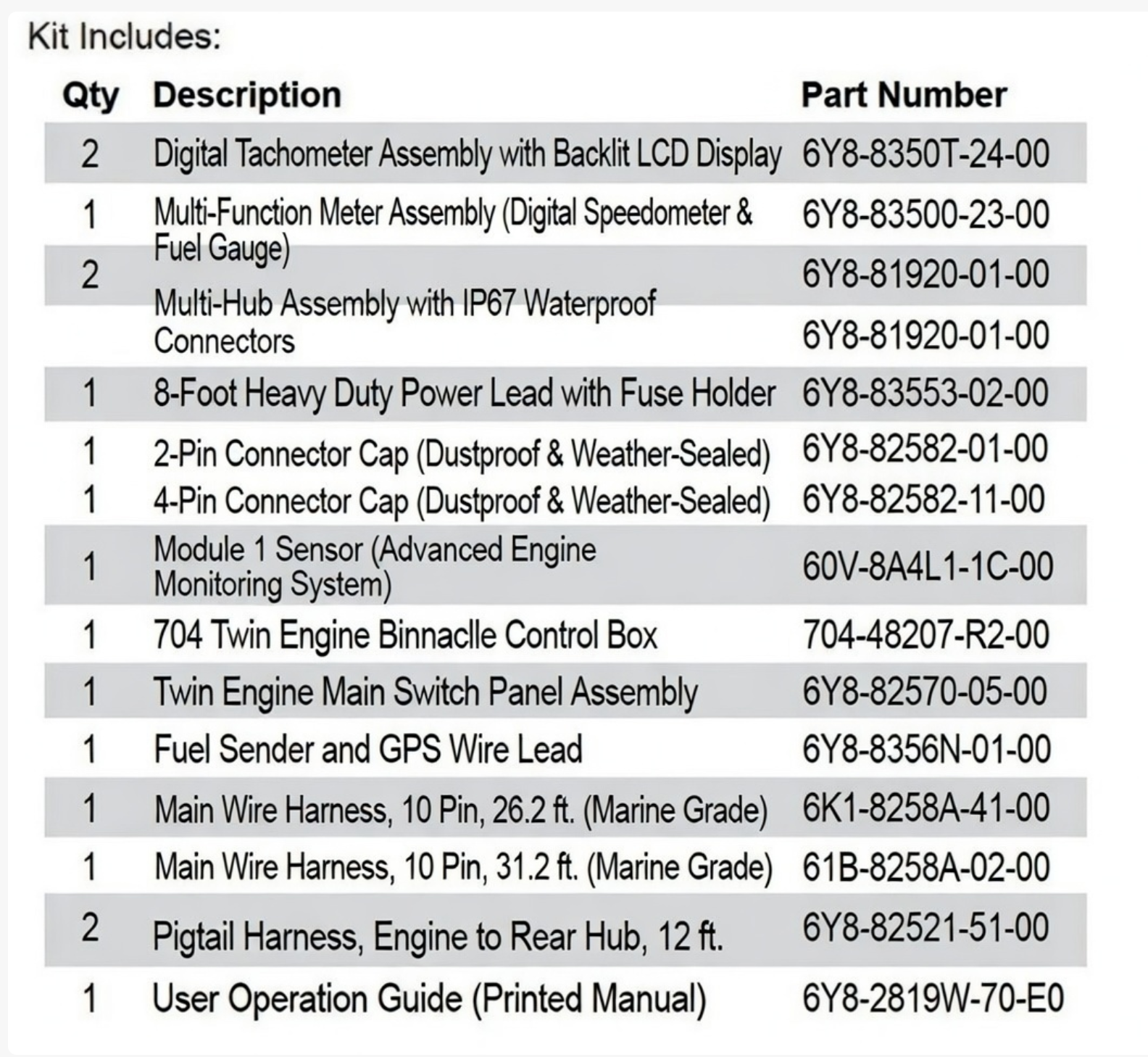

Kit Includes:
Qty Description Part Number
2 Tachometer Assy. 6Y8-8350T-24-00
1 Meter Assy. (Speed/Fuel) 6Y8-83500-23-00
2 Multi-Hub Assembly 6Y8-81920-01-00
1 Power Lead, 8 ft. 6Y8-83553-02-00
1 Cap, 2 Pin 6Y8-82582-01-00
1 Cap, 4 Pin 6Y8-82582-11-00
1 Module 1 Sensor 60V-8A4L1-1C-00
1 704 Twin Engine Binnacle Control Box 704-48207-R2-00
1 Twin Engine Main Switch Panel Assembly 6Y8-82570-05-00
1 Fuel Sender and GPS Wire Lead 6Y8-8356N-01-00
1 Main Wire Harness, 10 Pin, 26.2 ft. 6K1-8258A-41-00
1 Main Wire Harness, 10 Pin, 31.2 ft. 61B-8258A-02-00
2 Pigtail Harness, Engine to
Rear Hub, 12 ft. 6Y8-82521-51-00
1 User Operation Guide 6Y8-2819W-70-E0
